Communication Logging Device
3-channel CAN + 4-channel K-line communication logger with TFT display, USB-C and WiFi.
The OBDII Logger is a communication logging device built for developers of software, hardware and beyond. It captures and analyzes communication data with precision — the key to unlocking insights into communication protocols and streamlining development and optimization workflows.
| CAN channels | 3 × — pins 6/14, 3/11, 3/8 |
|---|---|
| K-line channels | 4 × — pins 1, 7, 12, 15 |
| Interfaces | USB-C, WiFi |

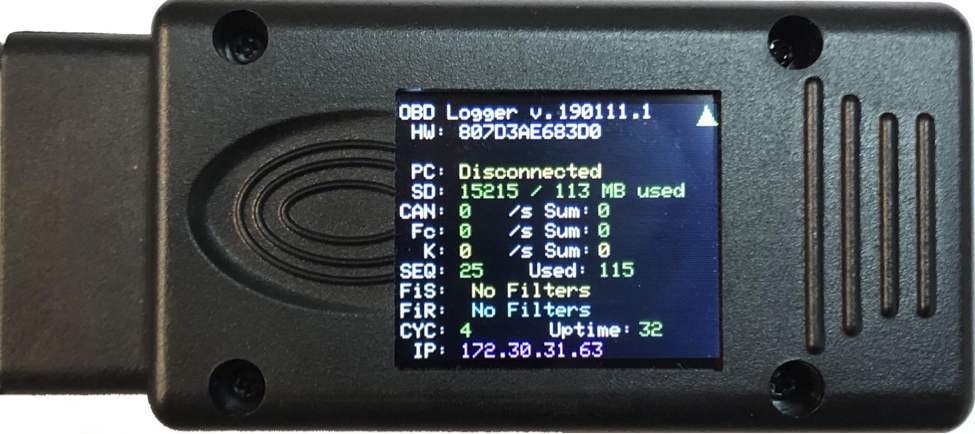

| Display | TFT with live status (HW, PC, CAN, Fc, K, SEQ, Used, FiS, FiR, CYC, Uptime, IP) |
| Working modes | USB interface, WiFi interface |

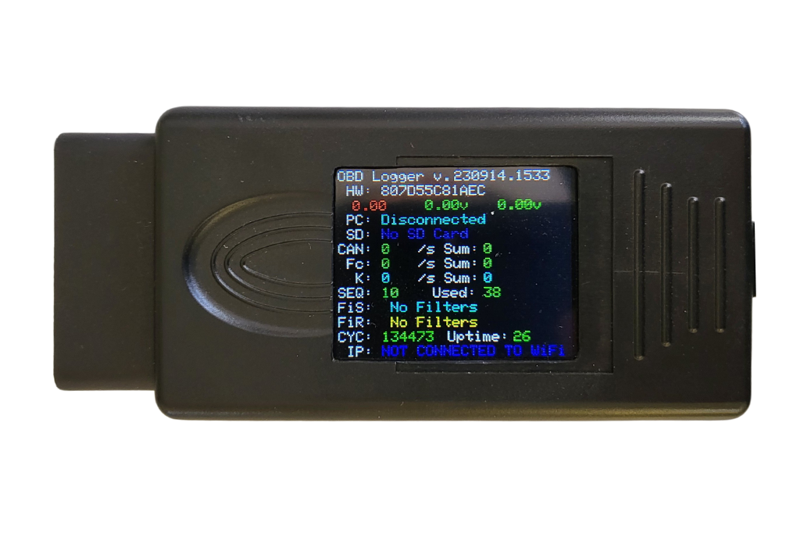

Display fields: HW — hardware serial number · PC — connection status (disconnected / USB / WiFi / server) · CAN — message count before filtering · Fc — filtered CAN count · K — K-line bytes · SEQ — current log file sequence · Used — power-on counter · FiS/FiR — single/range CAN filters · Uptime — seconds since boot · IP — device IP address.
